Budget-friendly

Full-HD IPTV Zapper

Back to basics

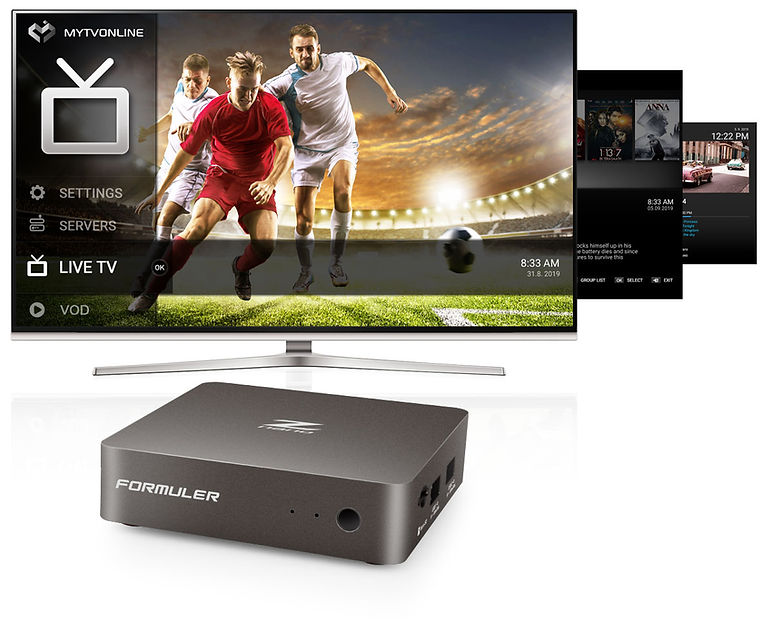

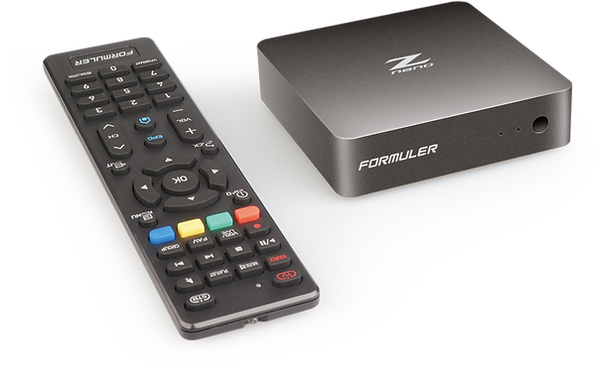

Formuler Z nano with MYTVOnline is the perfect way to enjoy OTT/IPTV contents on a budget.

Easy to use, Simple to manage

The simplified interface is easy-to-use for all ages.

Formuler Z nano performs great in managed environments where system operators require tighter

control over the user experience.

1/1

SPECIFICATION

A/V Decoding

Main Systems

Video Decoding

- H.265 Main Profile@L5.0 High-tier
- H.264 BP/MP/HP@level 5.0

- Full-HD 3D videos(MVC), blu-ray navigation

- AVS baseline@level 6.0 and AVS-P16 (AVS+)

- MPEG1, MPEG2 SP@ML, MP@HL

- MPEG4 SP@L0-3, ASP@L0-5, GMC

- MPEG4 short header format (H.263 baseline)

- VC-1 SP@ML, MP @HL, and AP@L0-3

- VP6/8

- MJPEG decoding, maximum 1080p@30 fps

- Low delay decoding

Image Decoding

Full HD JPEG hardware decoding,max 64 megapixels

MJPEG decoding, max 1080p@40 fps
PNG hardware decoding, max 64 megapixels



Video Formats

4:3 Letter Box, 4:3 PanScan, 16 : 9

Video Resolution

1080p50, 1080p30, 1080p24, 1080i60, 1080i50

720p, 576p, 576i, 480p, 480i

Audio Decoding

MPEG L1/L2
AAC-LC and HE AAC V1/V2 decoding

G.711 (u/a) audio decoding

Main Processor
Hisilicon chipset



Memory
eMMC : 4 GBytes
SDRAM : 512 MBytes (DDR3)

Audio / Video & Data IN / OUT

Front Panel

TV OUT

Video & Audio Output


USB
USB 2.0 x 2



A/V Out
CVBS Video, Audio L, R mini jack


Ethernet
RJ45 connector, 10/100M Base



IR Extension
Removable IR extension



S/PDIF
Optic

Indicators
2 Dual Color LED(Standby, Remote)

Power Supply

Input Voltage
AC 100 ~ 240V, 50/60Hz



Power Consumption
Adapter



Standby Power
Max. 15W

Max. 0.5W (Ultra low power)


Protection
Separate Internal Fuse & Lighting protection
